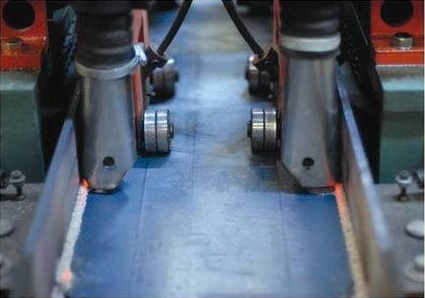

The trailer chassis welding line with special mechanical seam tracking device to weld around the contours on trailer chassis same time with two torch head.

The chassis welding machine can be equipped with either MIG or Submerged arc welding equipment and comes with dedicated PLC controls as optional.

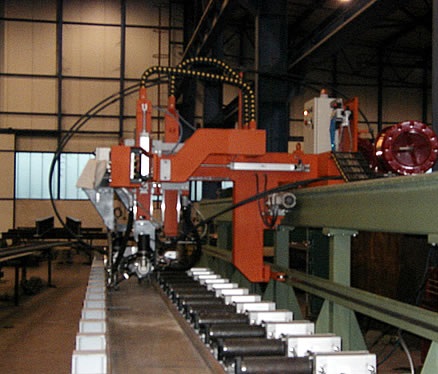

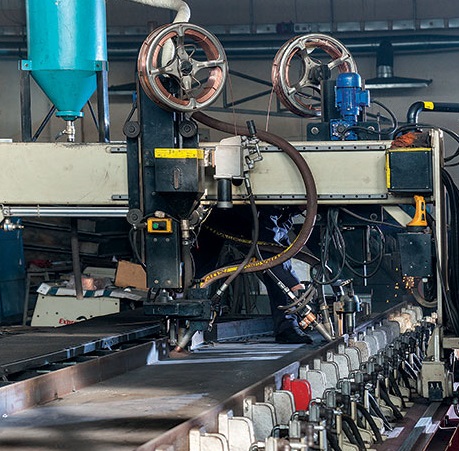

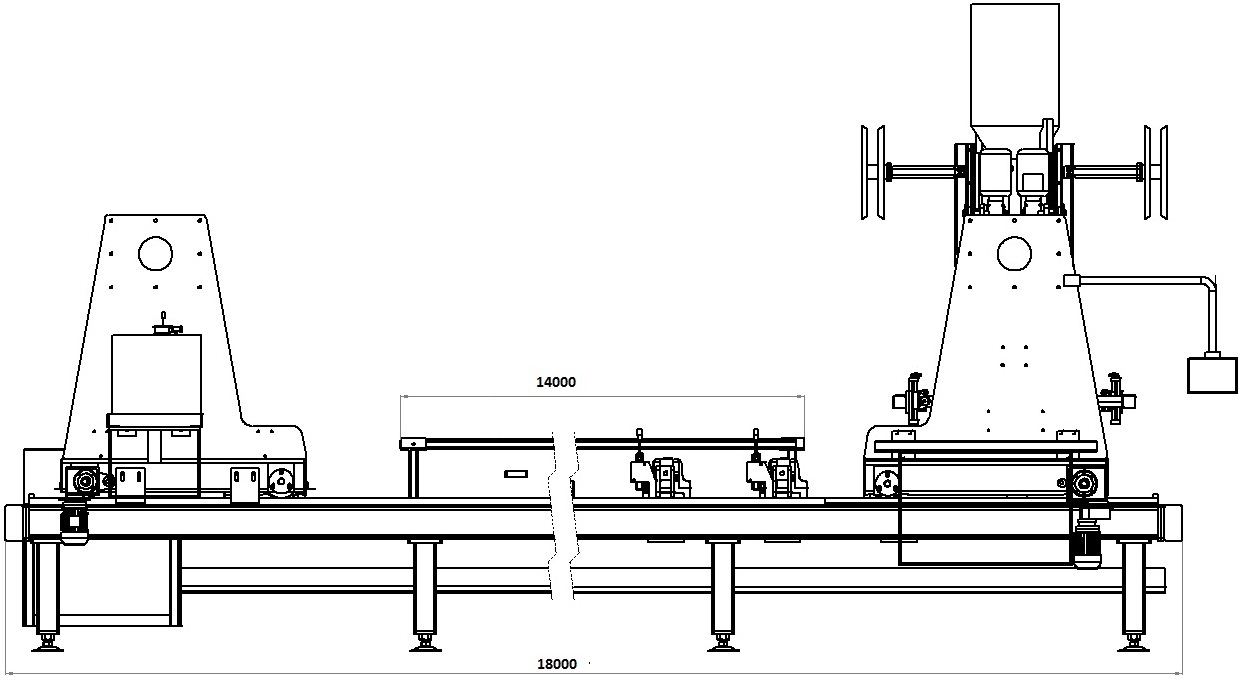

The trailer chassis welder shown in the images , is welding both the left hand and right hand trailer chassis in continuous line for approx 18 metres total length. The weldable leght is 14 meters which is standard lenght for trailer chassis.
We can offer this machine either mounted on a traversing column and boom manipulator or on a dedicated travel beam and carriage as shown in the images.
