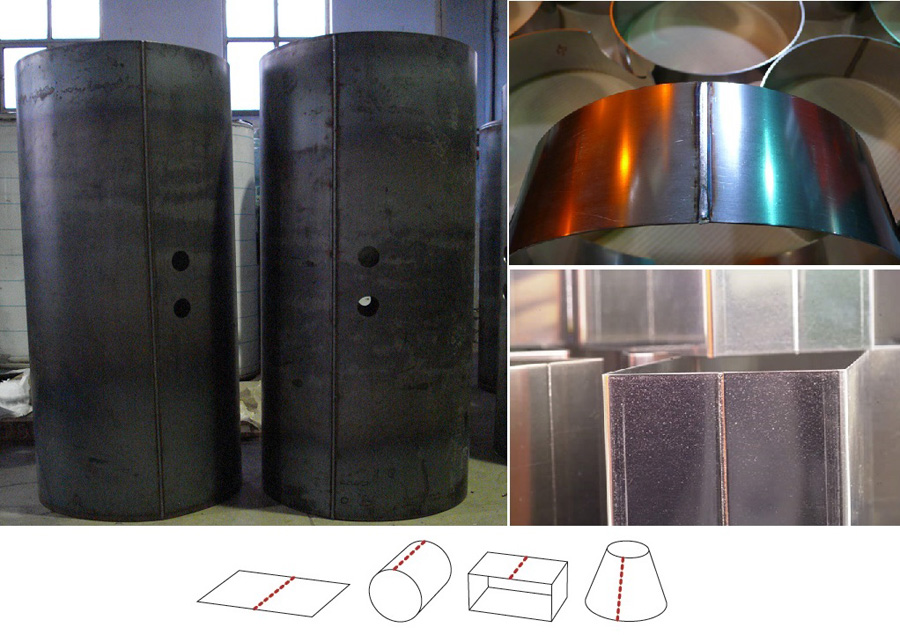

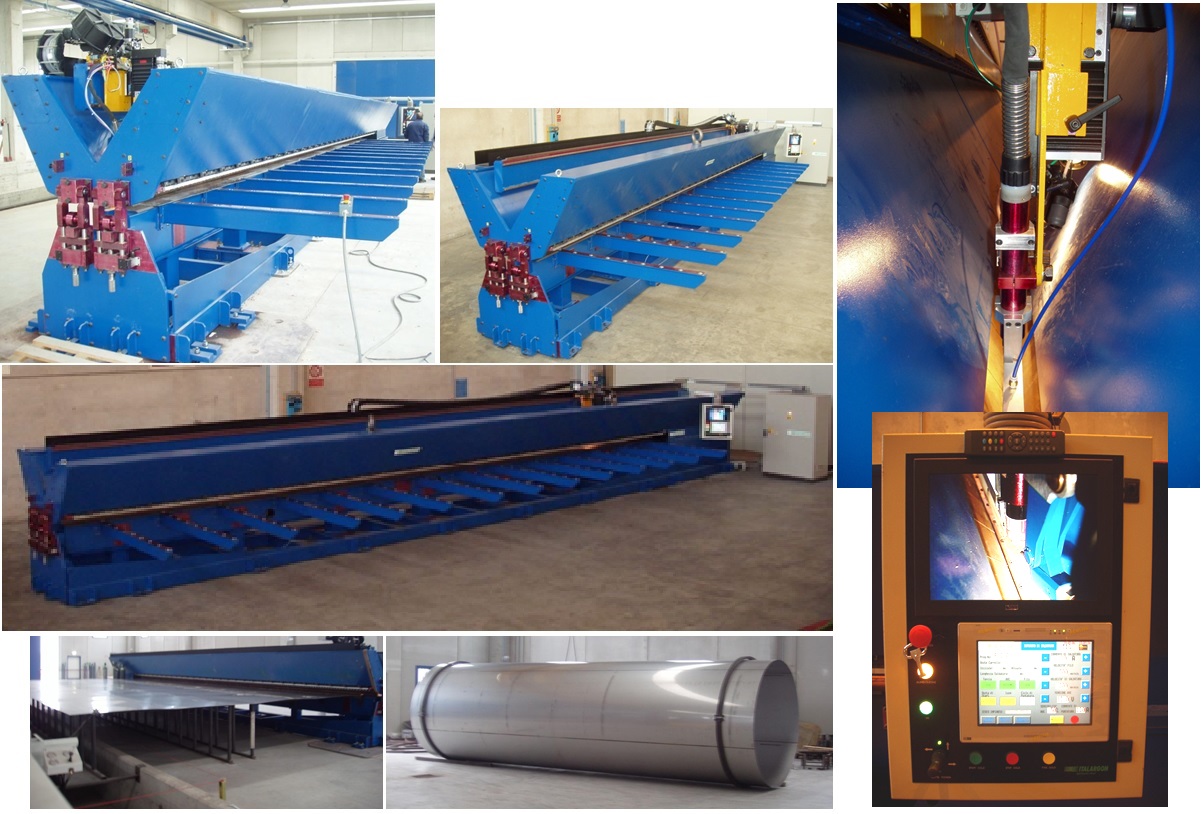

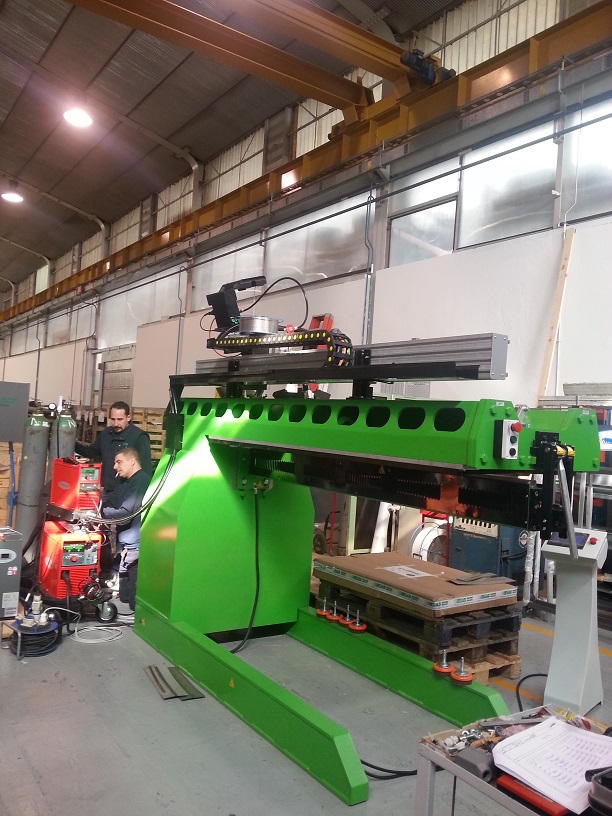

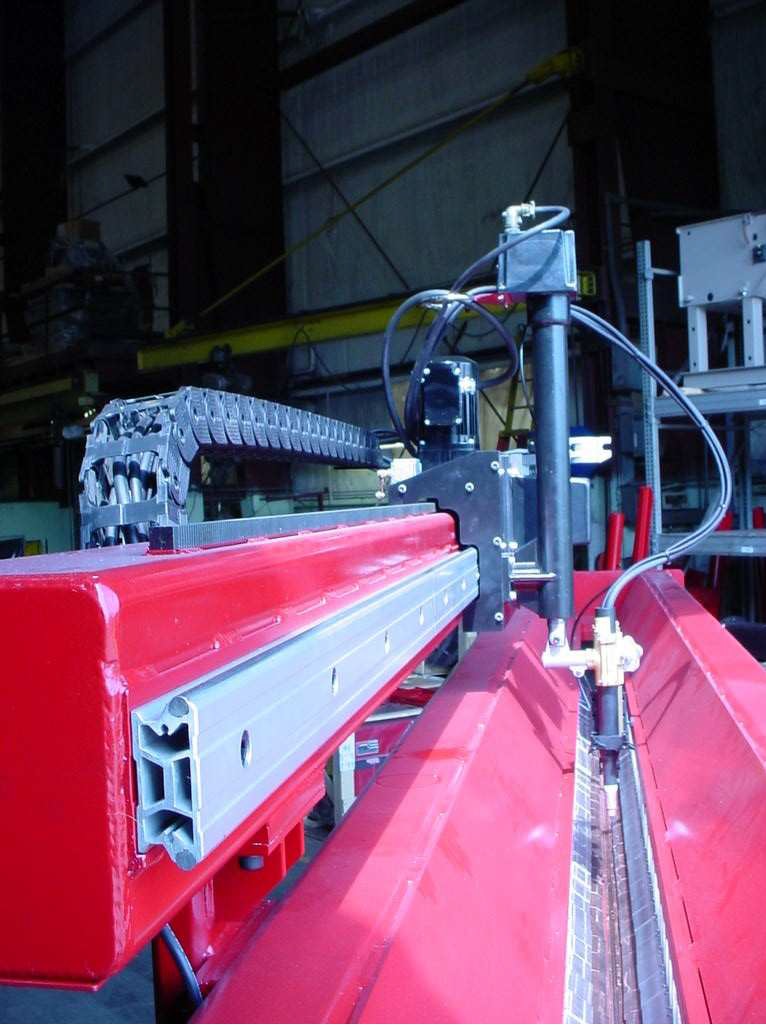

DEMKOM Longitudinal Seam Welders produce longitudinal butt welds on sheet metal parts to manufacture a variety of shapes, in addition to flat sheets,such as cylinders and cones. The component parts are clamped between precision machines copper fingers and a stationary mandrel with copper backing bar. The clamping fingers press down on the components to create a tight fitting and secure weld joint. The welding torch travels in a precise,straight line on lineer rails with lineer carriage.
External longitudinal seam welder is most common where the weld on the outside of a cylindrically shaped component from 1mm to 5mm thickness for carbon steel sheets. The weldable lenghts are 500mm to 2m.
Optional systems for Longitudinal seam welders
Water cooled mandrel
Insert gas back-up

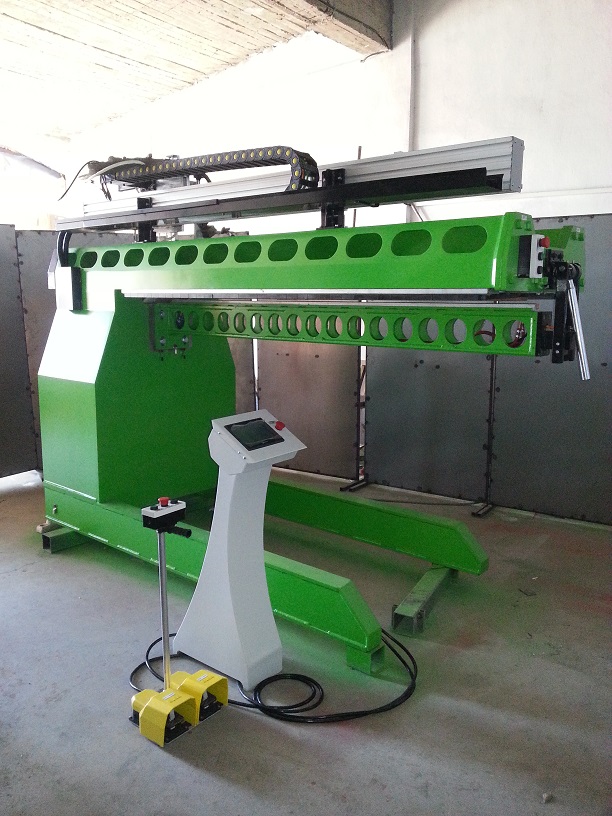

PLC automation
Loading cart

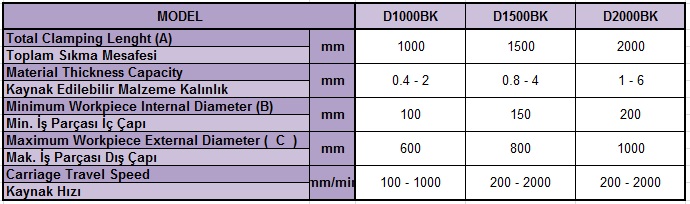

The production range of Longitudinal seam welders
External seamer
Internal seamer
Elevating seamer
