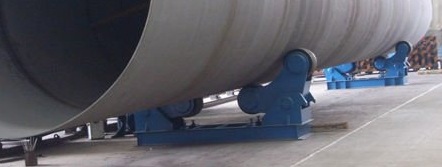

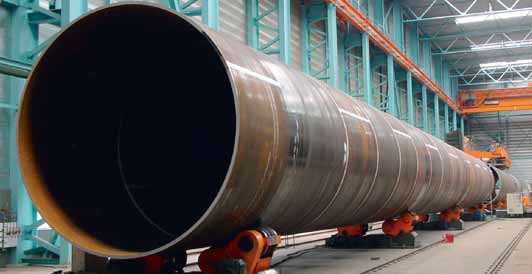

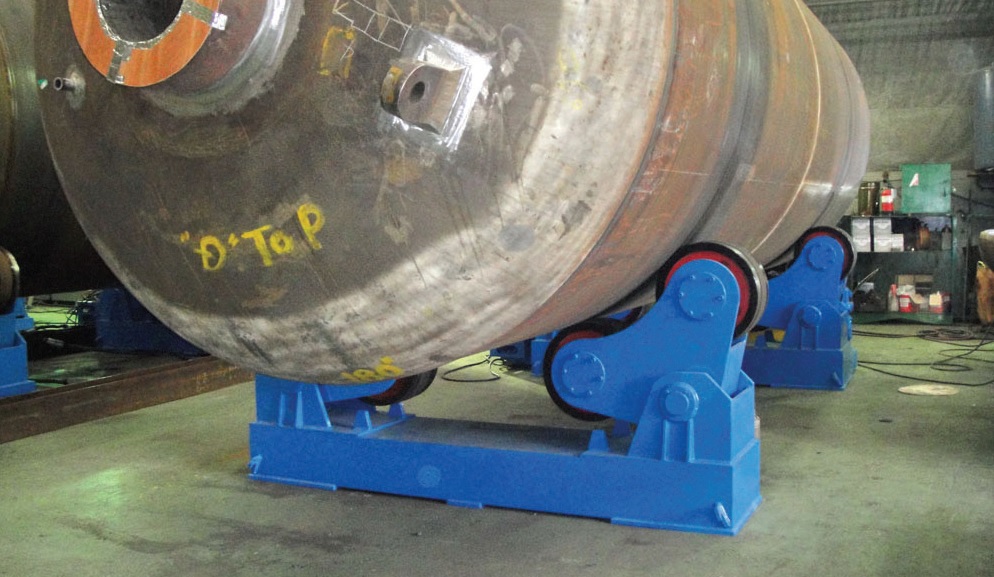

DEMKOM Self-Aligning rotators are designed and built to rugged environments expected such of applications and permits wheels to align themselves to the work-piece without the need for manually pre-adjustment.

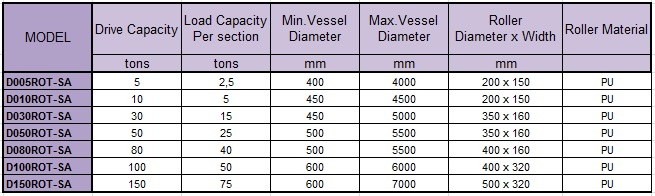

Self-Aligning rotators capacity range is 5tons to 150tons. Wheels are covered with polyurethane or for heavy duty work-pieces is steel. So all possible vibrations during work are prohibited. The rotators has travel bogies as optional.

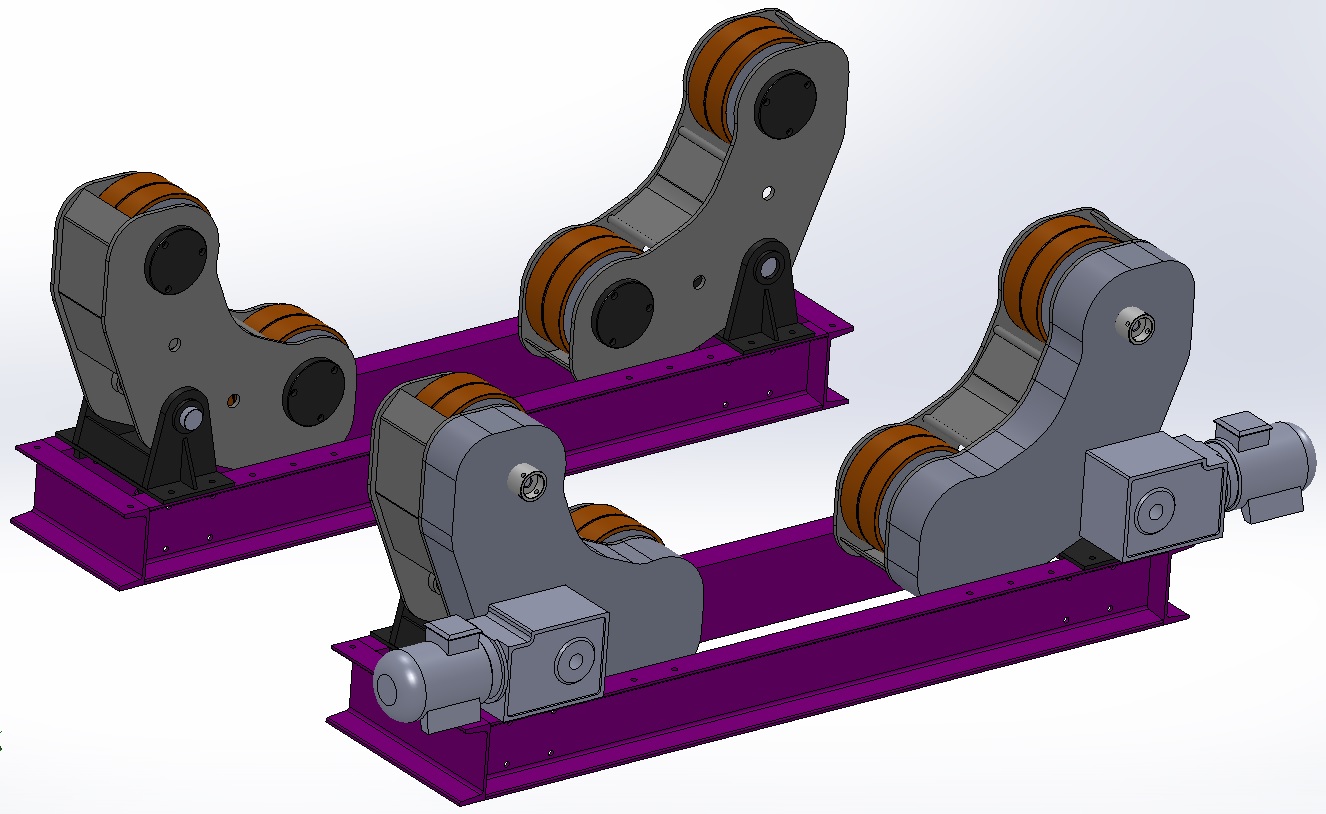

The powered driven unit drives synchronized all wheels by AC gear motor fitted inverter control. The idler units are the same dimensions to match the powered drive units.
